Below Grade Vault Chemical Injection
What we did
A leakage mitigation plan stopped major water intrusion in a below-grade vault by injecting grout at pipe sleeve penetrations and installing a perimeter concrete curb and sump pump to control standing water and prevent further deterioration.
Services
Waterproofing System
Curtain Wall Grouting
SPECIALTY contractor
6” – 8” of standing water in electrical basement causing deterioration

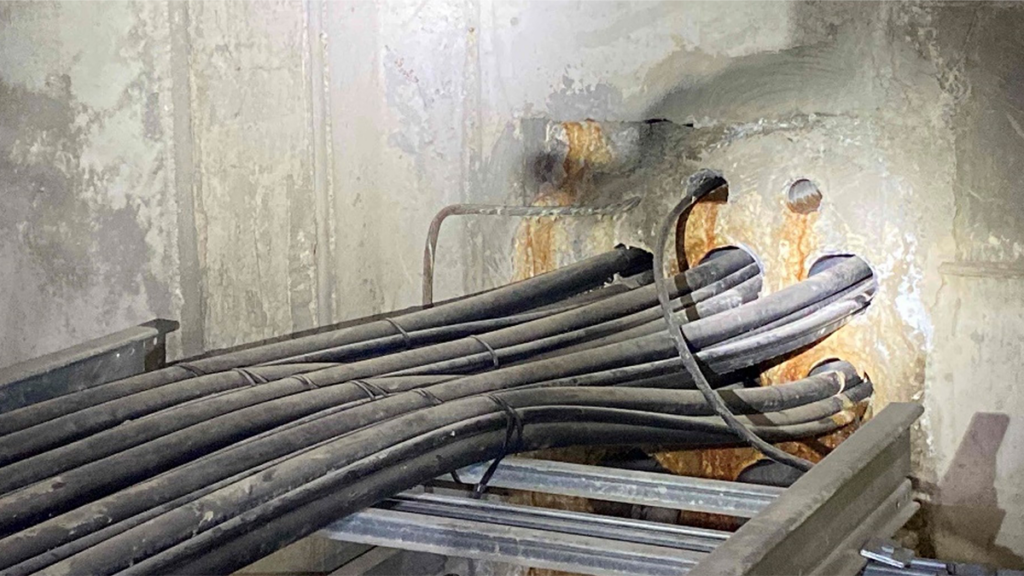

Main source of water ingress was through pipe sleeve penetrations

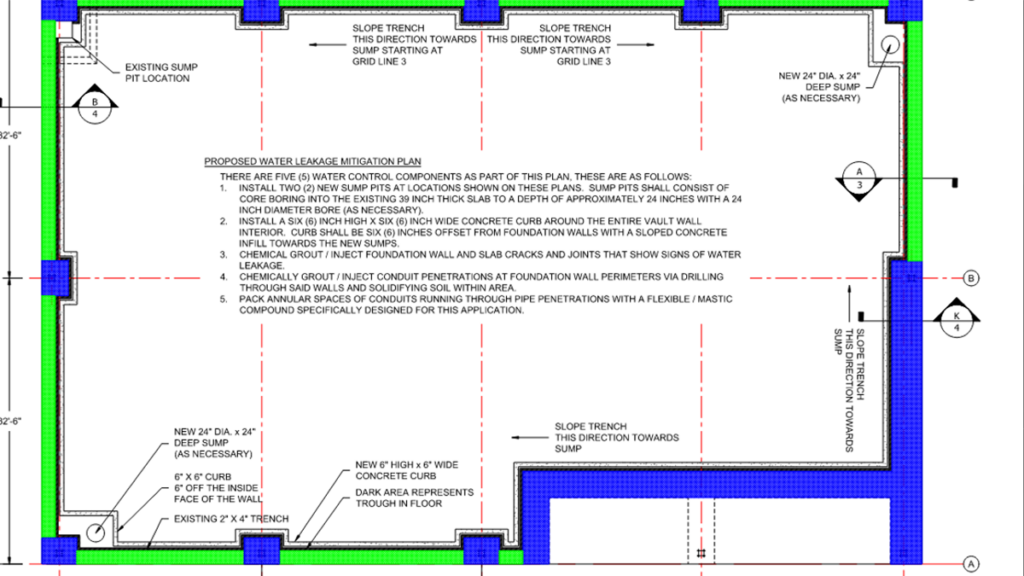

Team proposed a leakage mitigation plan

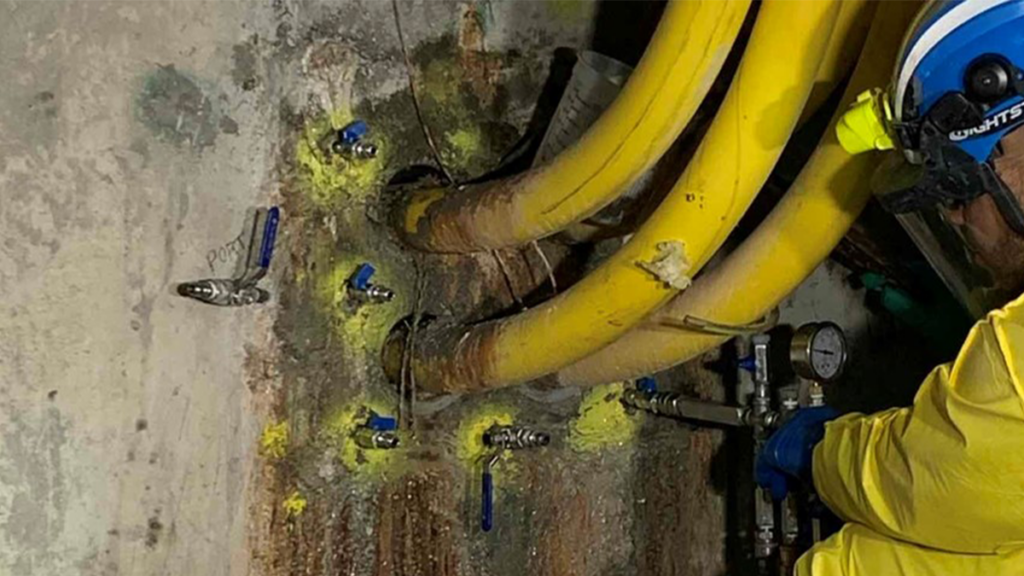

Grout injection at all problematic pipe sleeves

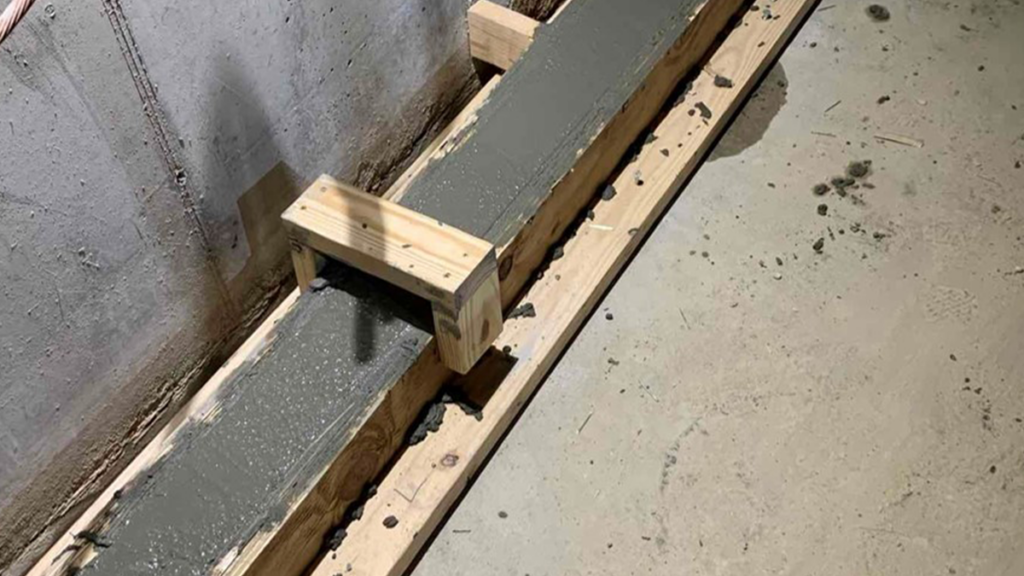

Installed concrete curb, sump pump to create perimeter trench

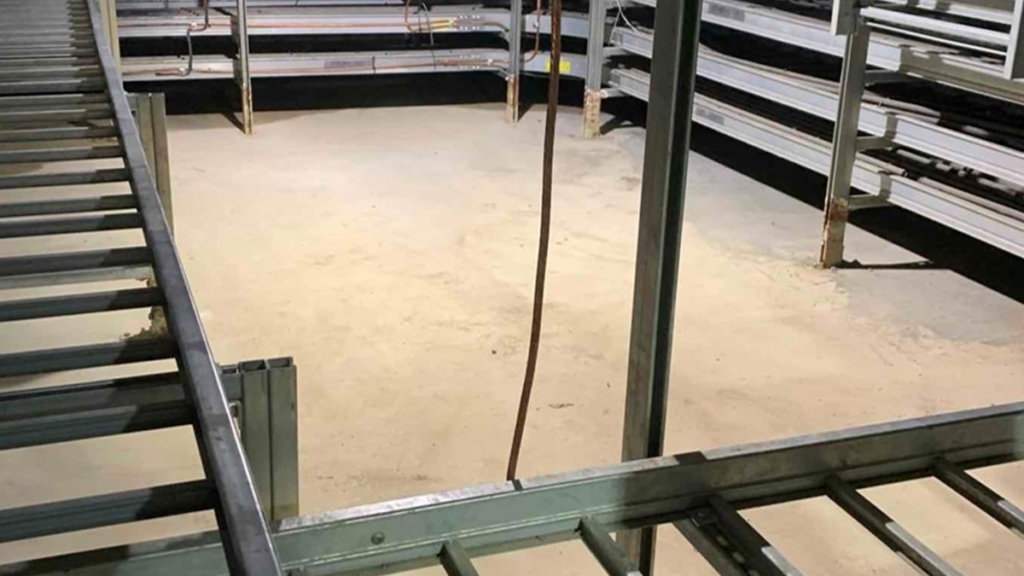

Completed repairs prevented water leakage
PROJECT DETAILS
A below grade vault had major water intrusion causing high levels of deterioration. There were approximately 6” – 8” of standing water with the main source being pipe sleeve penetrations.
STRUCTURAL was hired to perform the repairs. Bringing on their engineering and design partner, Strucproof, the team proposed a leakage mitigation plan. STRUCTURAL performed grout injection at all problematic pipe sleeves to prevent future leaking. The team also installed a concrete curb and a sump pump to create a perimeter trench.
The repairs significantly reduced the water intrusion and created an adequate control system.
